Service Daily Before Start-Up

IMPORTANT: Do not operate when oil level is below lower mark on dipstick.

For any off level operation engine oil must be maintained at the FULL mark to avoid engine damage.

1.
   LV14401-UN-31AUG11

   Left Side of Engine (Except 5075M)


   LV18172-UN-20JUN13

   Right Side of Engine (5075M)

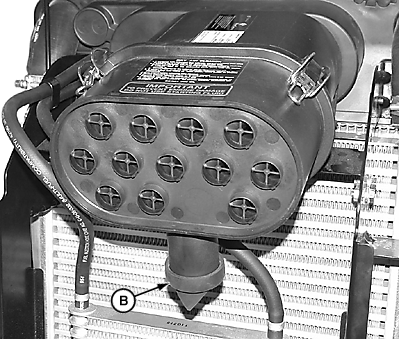

   LV14531-UN-03AUG11

   Dust Unloading Valve

   A - Engine Oil Dipstick

   B - Dust Unloading Valve

   Check engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and check oil level.

---




2. If operating in wet or muddy conditions, lubricate the following at the 10 hour service interval with multipurpose grease:

   • Front axle pivot pin
   • Steering spindles and cylinder ends (adjustable front axle)
   • Rear axle bearings



3. Lubricate with multipurpose grease:

   • Hood latch
   • Operator seat slide rails



4. Raise hood. Remove and clean dust unloading valve (B). Install valve, replace if damaged. Lower hood.
