Tighten Air Intake System and Engine Cooling System Hose Clamps

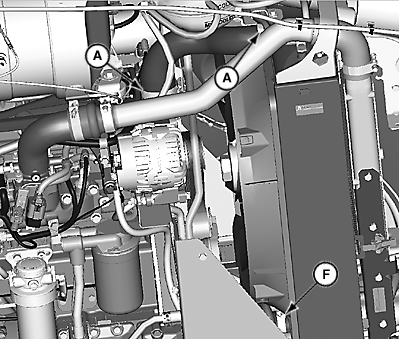

LV14658-UN-17AUG11

Right-Side View

LV14659-UN-18AUG11

Top View

A - Engine to Radiator Cooling System (Radiator Supply) Hose Clamp

B - Air Cleaner to Turbocharger Hose Clamp

C - Turbocharger to Charge Air Cooler Hose Clamp

D - Charge Air Cooler Outlet Hose Clamp

E - Engine Intake Hose Clamp

F - Radiator to Engine Cooling System (Water Pump Supply) Hose Clamp

Inspect hose clamps of air intake system and engine cooling system. Tighten any loose hose clamps.
