Change Transmission-Hydraulic Oil and Filter

IMPORTANT: Use a drain pan to capture oil from reservoir and filter. Dispose of waste oil properly.

1. Lower rear hitch to remove trapped oil.


   LV14613-UN-11AUG11


   LV14662-UN-18AUG11


   LV14663-UN-18AUG11


   LV14665-UN-18AUG11

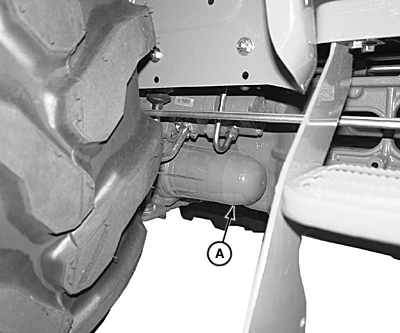

   A - Transmission Oil Filter

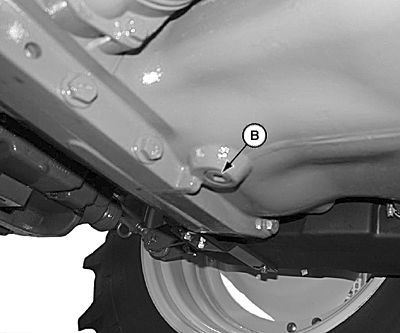

   B - Transmission Drain Plug

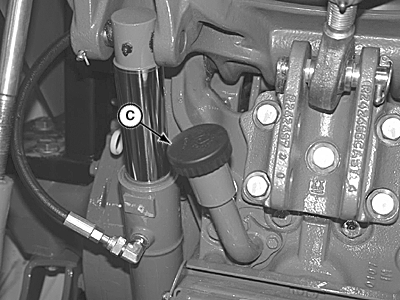

   C - Transmission Oil Filler

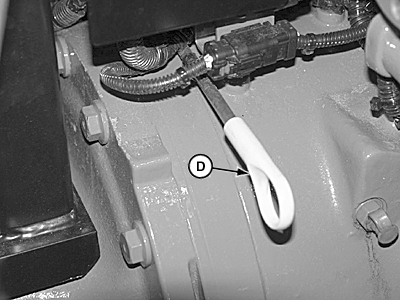

   D - Transmission Oil Dipstick

---




2. PARK tractor on level ground and shut off engine. Remove key.

3. Remove transmission-oil drain plug (B). Drain oil out.

4. Remove transmission-hydraulic filter (A) from filter base.

5. Clean threads on filter base and on new filter with transmission-hydraulic oil.

6. IMPORTANT: DO NOT over tighten filter.

   Apply oil to new filter seal and install filter (A). Tighten filter by hand, then tighten an additional 1/8 turn.

7. Apply TEFLON® or equivalent on thread of drain plug (B).

8. Install drain plug (B).

9. Item	Measurement	Specification
   Transmission Oil	Capacity	53 L (14 gal)

   Remove oil filler cap (C) and fill system with transmission-hydraulic oil.

10. Check oil level with dipstick (D) and again after five minutes of operation.
