Adjust Seat Armrests—If Equipped

1.
   LV9044-UN-17NOV03


   LV9045-UN-17NOV03

   A - Plastic Cover

   B - Cap Screw

   C - Nut

   D - Adjustment Slot

   E - Cap Screw

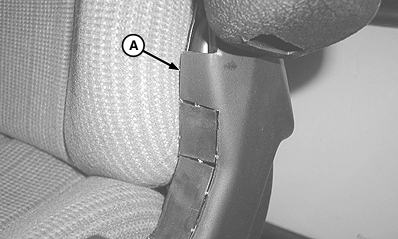

   Pry plastic cover (A) away from seat.

---

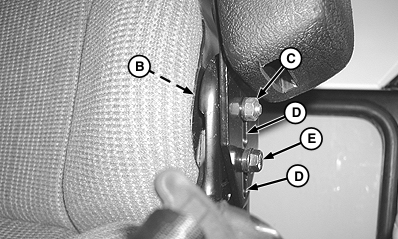

2. Loosen cap screws (B and E).

3. Slide armrest up or down to desired height, and tighten hardware.
