Air Conditioner and Heater Performance

LV10325
LV10325-UN-21SEP04

LV10326
LV10326-UN-21SEP04

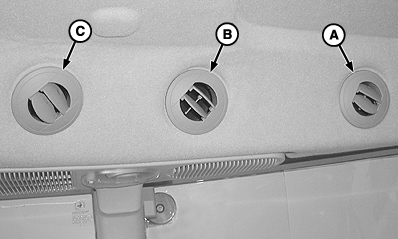

A - Front Vent

B - Middle Vent

C - Rear Vent

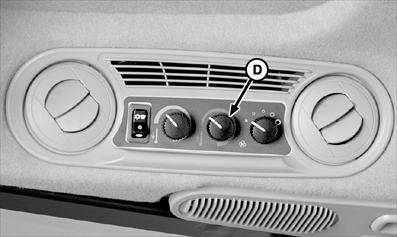

D - Heater Temperature Control Knob

Adjust individual vents to target heating or cooling:

  • Aim front vents (A) toward legs and mid-body.
  • Aim middle vents (B) toward your head.
  • Aim rear vents (C) toward your back.
  • Aim all vents (A, B, and C) down to heat the floor and feet. NOTE: For maximum cooling effect, turn heater temperature control knob (D) to full counterclockwise position.

JZ81662,000070E-19-20120208
