Use Auxiliary Power Strip—If Equipped

LV14830-UN-29SEP11

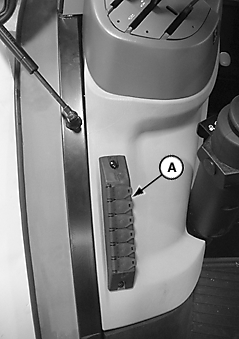

A - Auxiliary power strip

IMPORTANT: Power strip is not a surge suppressor. Electrical equipment with program memory requires protection from electrical surges and spikes.

The power strip provides six outlets of 12 V power with grounds to connect auxiliary equipment. This power is 30 amp switched (key accessory on position) and 30 amp unswitched (key off position).

NOTE: Positive symbol (+) on cover indicates circuit is unswitched. Circle symbol (O) on cover indicates circuit is switched.

Adapters are available from your John Deere dealer.
