Tighten Bolts—Adjustable Front Axle
LV14725-UN-25AUG11
Left-Side Shown
LV14726-UN-25AUG11
A - Axle-to-Knee Bolts

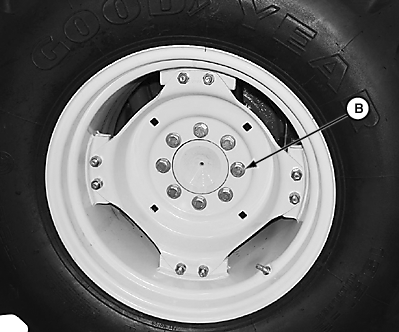

B - Disk-to-Flange Bolts
Tighten bolts (A and B) to specifications.
| Item | Measurement | Specification |
| Adjustable Front Axle-to-Knee Bolts (A) | Torque | 400 N˙m (295 lb-ft) |
| Adjustable Front Axle Disk-to-Flange Bolts (B) | Torque | 175 N˙m (130 lb-ft) |
|
JZ81662,0000743-19-20120208 |
