Tighten Bolts—MFWD Axle

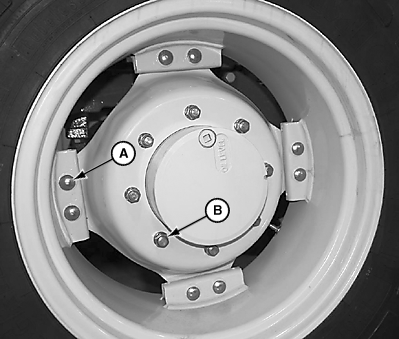

LV14727-UN-25AUG11
A - MFWD Wheel Rim-to-Disk Bolts
B - MFWD Wheel Disk-to-Hub Nuts
Tighten hardware (A and B) to specifications.
| Item | Measurement | Specification |
| MFWD Wheel Rim-to-Disk Bolts (A) | Torque | 245 N˙m (180 lb-ft) |
| MFWD Wheel Disk-to-Hub Nuts (B) | Torque | 300 N˙m (220 lb-ft) |
|
JZ81662,0000744-19-20120208 |
