Adjust Toe-In—Adjustable Front Axle

1.

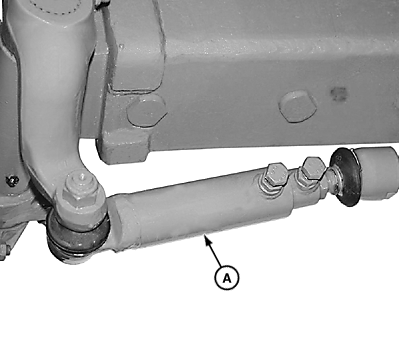

   LV14730-UN-25AUG11

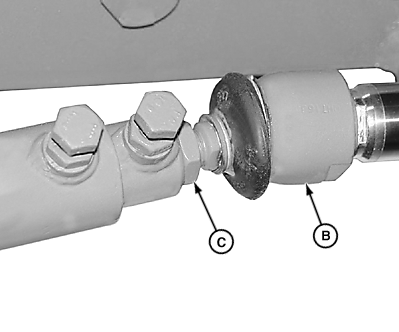

   LV14731-UN-25AUG11

   A - Tie Rod

   B - Inner Rod

   C - Tie Rod Jam Nut

   Loosen tie rod jam nut (C) on left and right tie rods (A).

---




2. Adjust left and right sides equally by rotating the inner rod (B) to lengthen or shorten tie rod, as needed, to obtain toe-in of 3—6 mm (1/8—1/4 in.).

   Tie Rod Rotation	Approximate Change in Toe-In
   1/2 turn	8 mm (5/16 in.)
   1 turn	16 mm (5/8 in.)

3. Tighten jam nuts to specification.

   Item	Measurement	Specification
   Adjustable Front Axle Tie Rod Jam Nut	Torque	120 N˙m (88 lb-ft)
