Front PTO—If Equipped

LV16148-UN-03OCT12

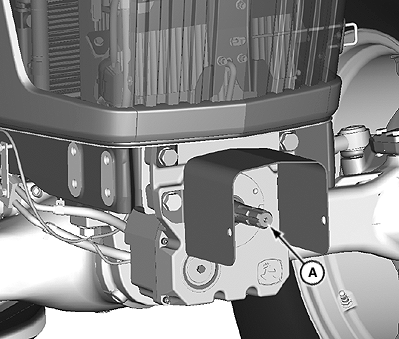

Front PTO Stub

A - Front PTO Stub

The front PTO (A) has six splines and a standard speed of 1000 rpm.

Operating Front PTO

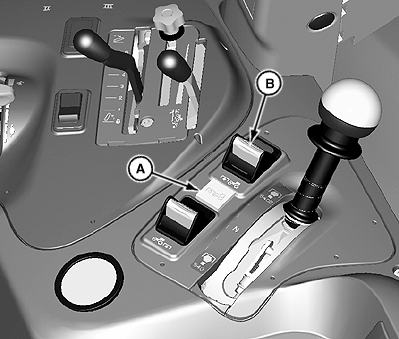

LV16149-UN-03OCT12

A - Front PTO Indicator Light

B - Front PTO Switch

CAUTION: Always disengage PTO when not in use. Shut off engine before working on PTO or implement.

CAUTION: High-inertia implements do not stop immediately upon shifting PTO to disengaged position. Do NOT approach implement while it is powering down. Do NOT work on implement until it has come to a complete stop.

PTO can be engaged or disengaged on-the-go and under load. When the front PTO is engaged, indicator (A) will light.

To engage PTO, press the front PTO switch (B) down, then push forward. To disengage PTO, pull front PTO switch back.

NOTE: If engine is shut off while PTO is running, then restarted, PTO will not re-engage. However, PTO indicator light will remain on. Switch PTO off, then restart.
