Connect Cylinder Hoses to Rear SCV

1.
   LV14591-UN-10AUG11

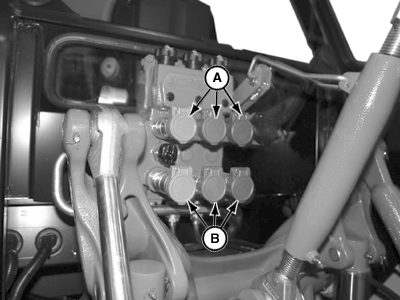

   Triple Rear SCV Shown

   A - Top (Extend) couplers

   B - Bottom (Retract) couplers

   Identify extend and retract hoses.

---




2. Remove dust caps (if equipped) from hose end.

3. Open coupler covers.

4. CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

   Making sure hose end and coupler are clean, push hose tip firmly into selective control valve (SCV) coupler. Pull on hose to make sure positive connection was made.

   Connect extend hoses to top couplers (A) and retract hoses to bottom couplers (B).
