Connect and Operate Single-Acting Cylinder

LV14592
LV14592-UN-10AUG11

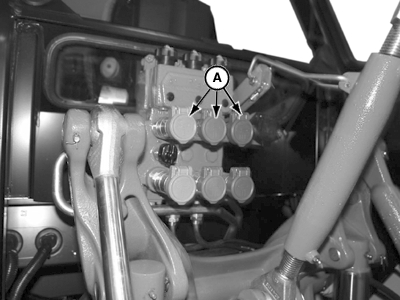

Triple Rear SCV

A - Extend Couplers

Single-acting cylinder should only be connected to selective control valve (SCV) extend coupler (A).

IMPORTANT: Volume of oil required to extend cylinder will lower transmission-hydraulic oil level. With cylinder fully extended, check oil level and fill to proper level. (See “Check Transmission-Hydraulic Oil Level”, in Maintenance Guide.)

Pull selective control valve (SCV) control lever back to pressurize and extend single-acting cylinder.

Push SCV control lever fully forward to “float” position to retract cylinder.
