Use Rear SCV to Provide Power Beyond Oil

IMPORTANT: Power beyond connections must be used when operating any external hydraulic orbital motor with this tractor. Failure to comply with Power Beyond connections will overheat and possibly damage the tractor’s hydraulic system.

IMPORTANT: For continuous oil supply, set rear SCV valve l, ll, or lll to “continuous” detent.

  1. NOTE: If equipped with deluxe rear selective control valve (SCV), oil can be supplied to power beyond equipment.

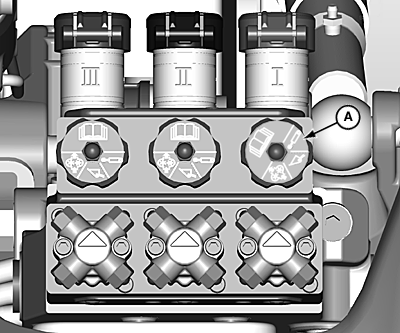

    LV14608
    LV14608-UN-11AUG11

    A - SCV I into Continuous Position

    SHUT OFF engine.


  2. Connect power beyond hose to SCV I couplers.

  3. Set deluxe rear SCV I detent to “continuous”.

  4. START engine.

  5. Move SCV control lever I into extend or retract.

  6. Oil is now supplied to power beyond device.

  7. To stop, de-activate power beyond device, then place SCV control lever I into neutral.

  8. SHUT OFF engine and disconnect hoses.

JZ81662,0000E50-19-20120820
