Use Rear SCV to Operate Loader

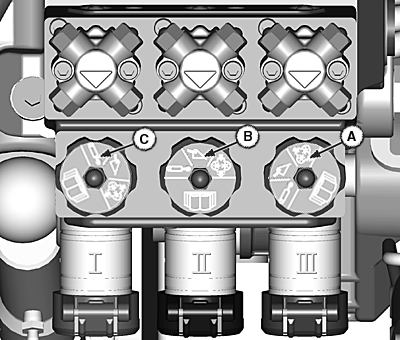

LV14319-UN-19MAY11

A - No Detent (Loader) Position

CAUTION: Avoid injury or death caused by falling loads. When using deluxe selective control valves (SCV) to operate loader, detents must be set in No Detent (Loader) position (A), for loader movement to stop when control lever is released. Moving control lever to a detented position would cause the loader to unexpectedly rise to full height and the load to fall back on the operator or suddenly lower to the ground, causing crushing injury.

When using loader, always put SCV detent selector knobs in loader position to prevent unexpected machine movement.
