Use Rear SCV Oil Collection Tank—If Equipped

LV14620
LV14620-UN-11AUG11

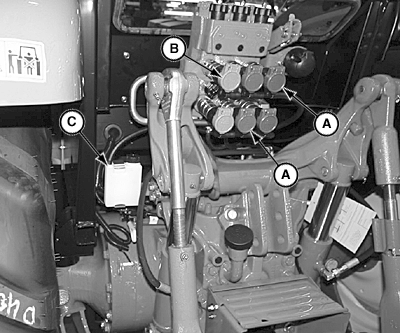

A - Hose

B - SCV Coupler

C - Oil Collection Tank

Oil might leak during hose uncoupling with rear selective control valve (SCV). Collars installed onto couplers (B) capture oil, and hoses (A) transfer oil to a removable collection tank (C).

Parts for this attachment are available from your John Deere dealer.

JZ81662,0000E56-19-20120820
