Hydraulic Trailer Brake Valve—If Equipped

PULV004639-UN-13NOV09

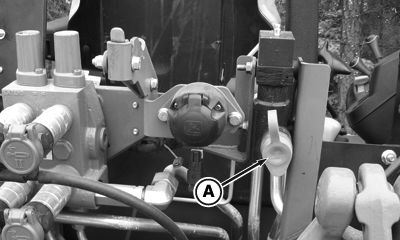

Hydraulic trailer brake coupler

Remove cap from trailer brake coupler (A) and connect pressure hose, making sure connections are absolutely clean.

Depress brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

CAUTION: Never exceed a speed of 25 km/h (15 mph) when travelling with hydraulically braked trailers.

IMPORTANT: To prevent undue wear on the brakes, observe the following points:

Make sure that the pressure hose is connected.

When driving downhill, select the same gear you would for driving uphill.

Check the hydraulic trailer brake regularly to make sure that it is functioning correctly.
