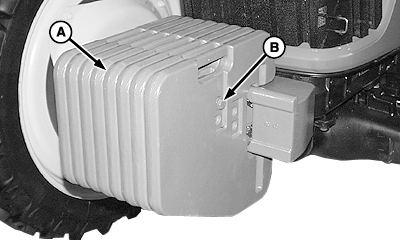

Front End Ballast

LV9683-UN-17AUG04

A - Ballast Center

B - Ballast Retaining Bolt

CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. Heavy pulling and heavy rear-mounted implements tend to lift front wheels. When handling weights, use proper lifting equipment.

Determine the minimum number of front weights required from implement code in implement operators manual.

NOTE: Approximate weight of QUIK-TATCHQuik-Tatch™ weights is 47 kg (104 lb). Drive slowly over rough ground when implement is raised.

Up to 14 QUIK-TATCH™ weights can be installed on the front of the tractor.

1. Install weights in pairs, one on each side of center (A).

2. To hold weights in place, insert retaining bolts (B) through holes from side to side. Tighten to specification.

   Item	Measurement	Specification
   Ballast Weight Retaining Bolt	Torque	215 N˙m (159 lb-ft)
