Tow Tractor

CAUTION:

LV14557
LV14557-UN-03AUG11

LV14558
LV14558-UN-03AUG11

LV14559
LV14559-UN-03AUG11

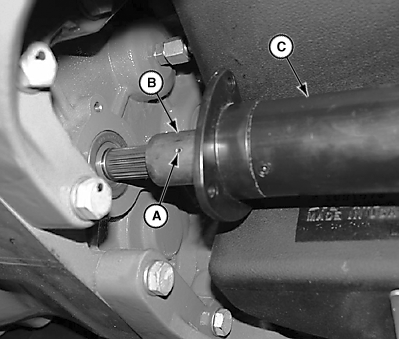

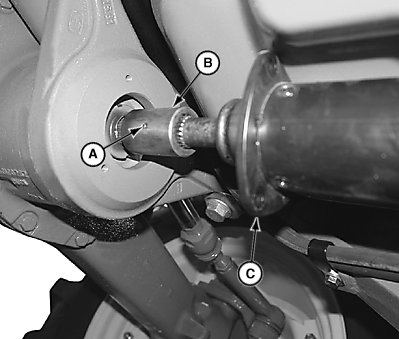

A - Spring Pin

B - Coupler

C - Drive Shaft Shield

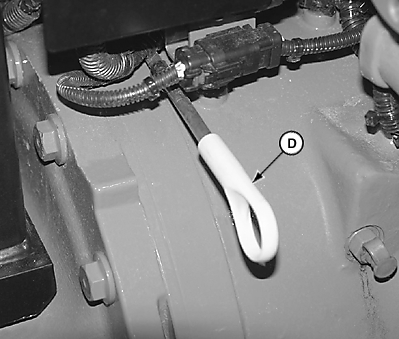

D - Dipstick

Remove MFWD drive shaft if towing tractor with front wheels on a carrier. Loss of electrical power or transmission-hydraulic system pressure will engage the MFWD and pull tractor off the carrier, even with switch in the DISENGAGED position.

IMPORTANT: To avoid transmission and drive train component damage, NEVER attempt to start tractor by towing; engine will not start.

  1. If equipped with MFWD and towing tractor with front wheels on a carrier, remove drive shaft:

    1. Remove three cap screws and slide drive shaft shield (C) away. Repeat on opposite end.

    2. Remove spring pin (A) using a punch and hammer.

    3. Support drive shaft and slide coupler (B) toward shield (C) to disengage.

    4. Remove drive shaft, shields, and couplers.

  2. If possible, operate engine above 1250 rpm to provide lubrication, power steering, and power brakes. Have an operator steer and brake tractor.

  3. If not possible to run engine, add 40 L (10 gal.) of transmission-hydraulic oil to transmission. Drain excess oil after transporting.

  4. Tap brake pedals to make sure differential lock is not engaged.

  5. Disengage PTO and move range and speed shift levers to NEUTRAL.

  6. PowrReverser™ Transmission: Move reverser lever to NEUTRAL.

  7. Do not tow a tractor faster than 8 km/h (5 mph). Do not exceed 3 km/h (2 mph) for the first 10 minutes at temperatures below freezing point.


After Towing

If equipped with MFWD, apply multipurpose grease to couplers and shaft splines, and reinstall drive shaft assembly.

Drain excess transmission-hydraulic oil to lower level back to full.

Check oil level with dipstick (D) after draining and again after operating for five minutes.
