Convert Category II Hitch to Category I

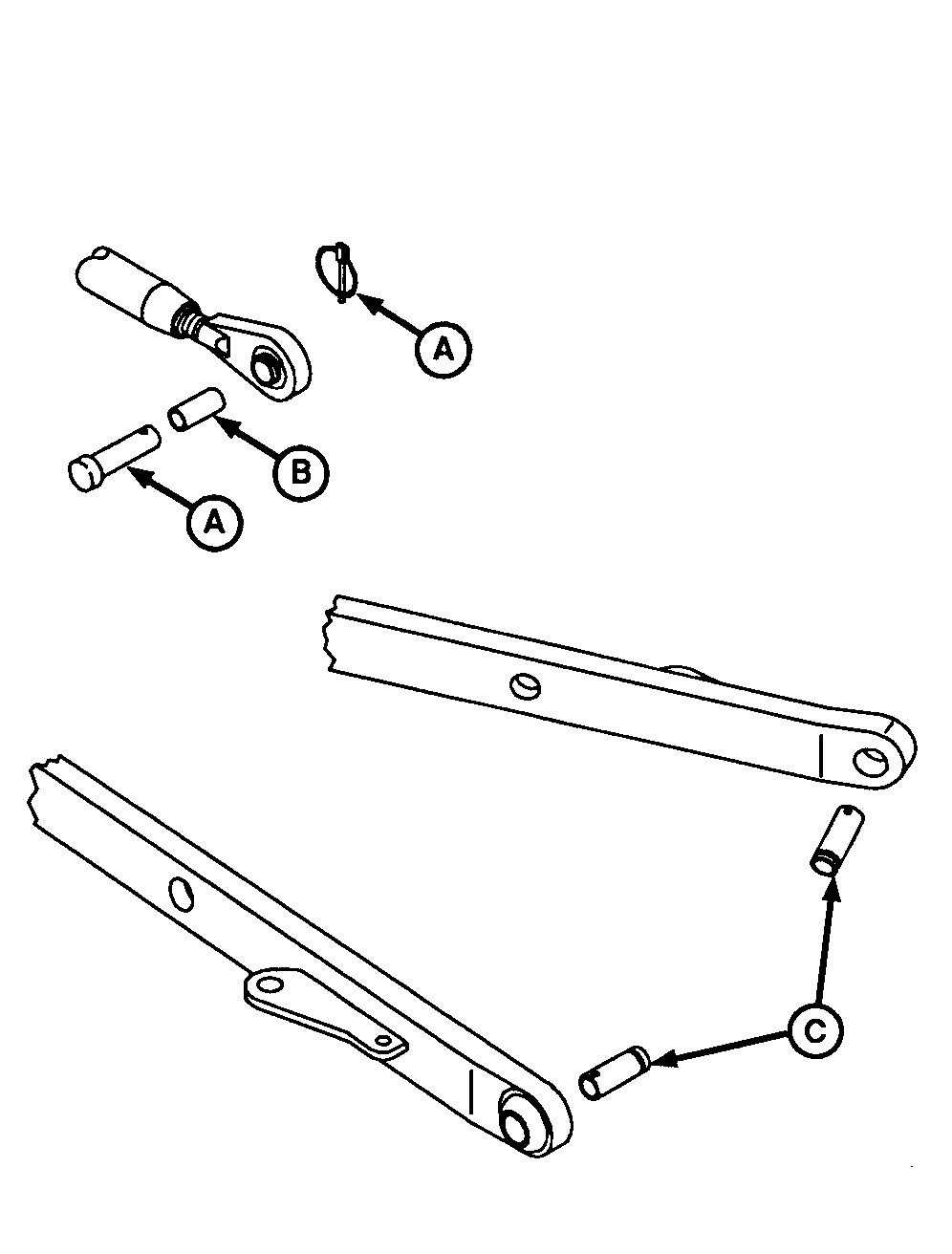

M47171A-UN-22APR94

A - Implement Pin

B - Center Link Reducing Bushing

C - Draft Link Reducing Bushing

If Category I implements are to be used, the Category II hitch can easily be converted by inserting reducer bushing (B) in center link end, using smaller implement pin (A) through the implement mast, and by adding draft link reducer bushings (C) to end of draft links.

See your John Deere dealer for parts.

NOTE: Category I implements may require center link attaching bracket to be inverted. Refer to “Position Center Link” in this section.
