Level Hitch

1.
   LV14578-UN-05AUG11


   LV14579-UN-05AUG11


   LV14580-UN-05AUG11

   A - Locking Clip

   B - Center Link Counterclockwise Rotation

   C - Center Link Clockwise Rotation

   D - Locking Handle

   E - Locking Tab

   F - Slot

   G - Roll Pin

   Lower implement to take weight off hitch and adjust center link to level implement front-to-rear.

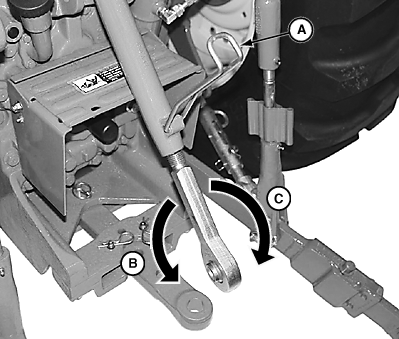

   1. Unlatch locking clip (A). Rotate center link body:

      • CLOCKWISE to lengthen center link.
      • COUNTERCLOCKWISE to shorten center link.



   2. Latch locking clip.

---




2. IMPORTANT: DO NOT attempt to overextend center link beyond limits of locking clip or lift links past the stops (missed thread). Link body threads could be damaged.

   NOTE: Maximum adjustment range of the center link can only be obtained if the ends are positioned equally within the body when attached to an implement.

   Adjust lift link to level implement side-to-side.

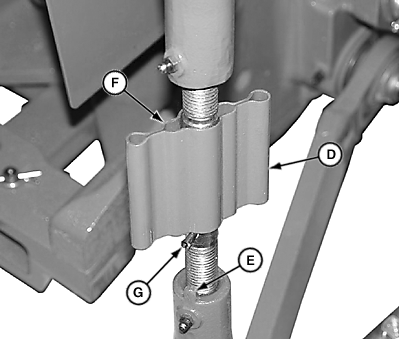

   1. Lift locking handle (D) to clear locking tab (E). Keeping slot (F) engaged on roll pin (G), turn locking handle (D):

      • CLOCKWISE to raise draft link.
      • COUNTERCLOCKWISE to lower draft link.

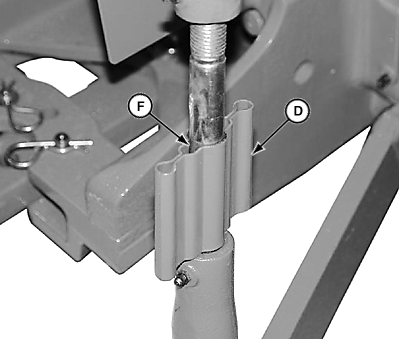

   2. When adjustment is complete, align slot (F) with locking tab (E), and lower to lock in place and prevent change of adjustment during operation.
