Lubricate Trailer Hitch

LV16023
LV16023-UN-04SEP12

LV16024
LV16024-UN-04SEP12

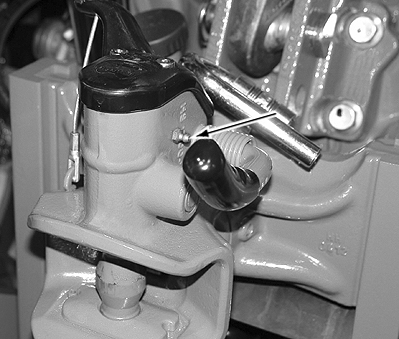

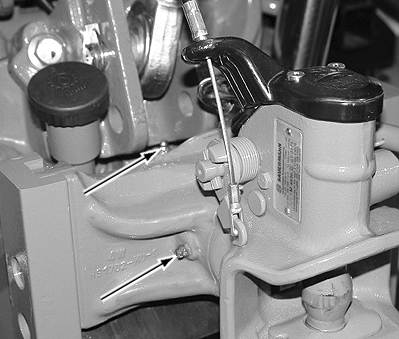

Lubricate grease fittings. Use John Deere multi-purpose grease.

Apply grease to the slide rails also.

Check that the trailer hitch functions properly.

JZ81662,0000E73-19-20120829
