Clean and Check Battery Condition

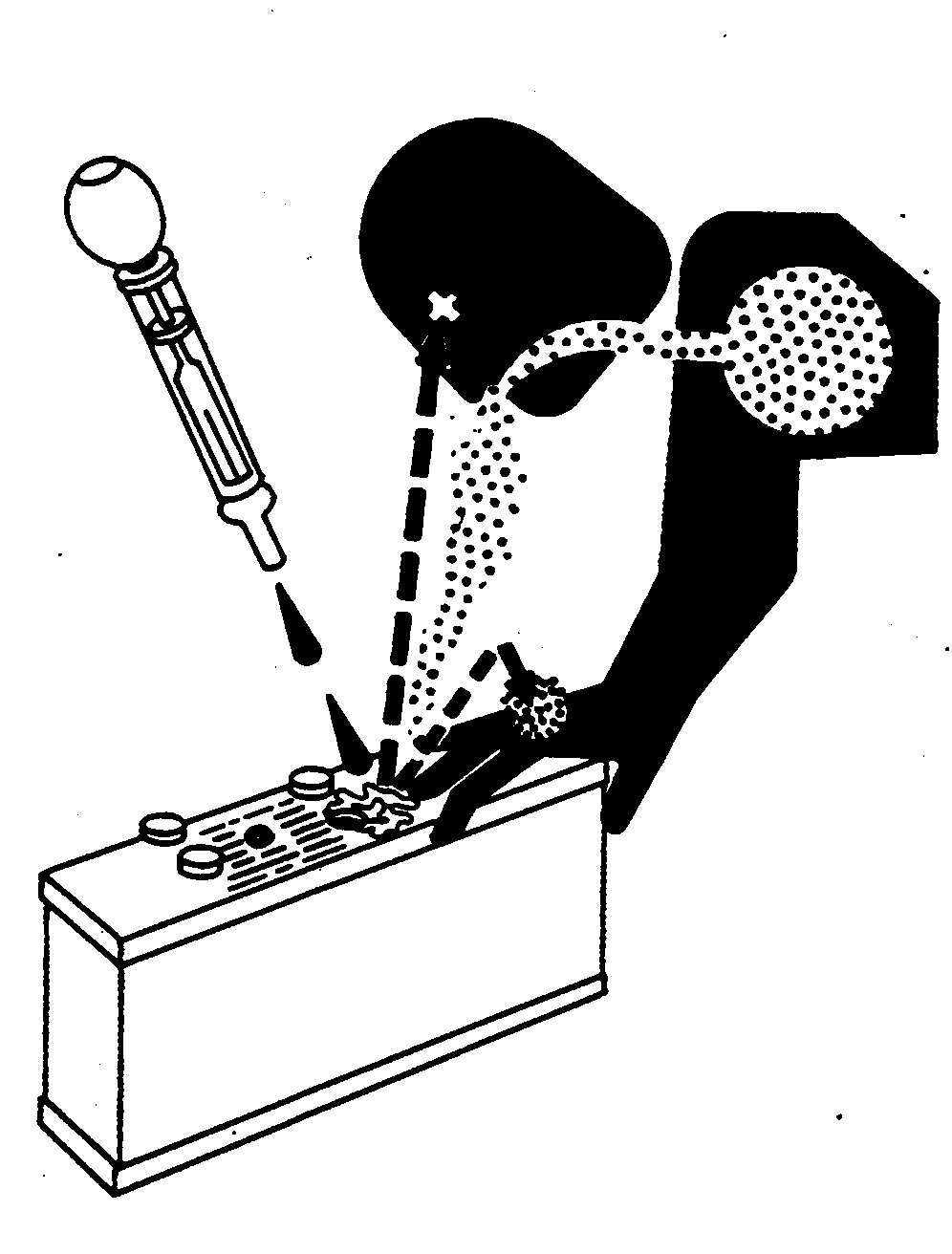

CAUTION:

TS203-UN-23AUG88

Avoid the hazard by:

1. Filling batteries in a well-ventilated area.
2. Wearing eye protection and rubber gloves.
3. Avoiding breathing fumes when electrolyte is added.
4. Avoiding spilling or dripping electrolyte.
5. Using proper jump start procedure.

If you spill acid on yourself:

1. Flush your skin with water.
2. Apply baking soda or lime to help neutralize the acid.
3. Flush your eyes with water for 15—30 minutes. Get medical attention immediately.

If acid is swallowed:

1. Do not induce vomiting.
2. Drink large amounts of water or milk, but do not exceed 2 L (2 quarts).
3. Get medical attention immediately.

1.
   LV14424-UN-13JUN11


   PULV000655-UN-05MAY08

   A - Cell

   B - Plates

   C - Electrolyte Level

   Check level of electrolyte in each cell (A) at least every 300 hours. Ensure that every cell has fluid level HIGHER than top of plates. Only use CLEAN, SOFT water to fill up electrolyte level.

   IMPORTANT: DO NOT add water in freezing weather unless tractor will be run at least 30 minutes to assure thorough mixing.

---




2. Use a battery hydrometer to check specific gravity of electrolyte in each cell. Charge battery if reading is below 1.215. Replace battery if difference between cells is more than 0.050 or if battery will not charge above 1.225.

3. Always correct specific gravity reading for electrolyte temperature variation. Add 0.004 to the reading obtained in step one for every 10°F above 80°F (add 0.007 to the reading for every 10° above 27°C). Subtract at same rate if electrolyte temperature is below 80°F (27°C). Corrected specific gravity of a fully charged battery is from 1.265 to 1.280.

4. A battery is considered fully charged when three consecutive hydrometer readings, taken at hourly intervals, show no rise in specific gravity.

5. Wipe battery with a damp cloth. Clean and tighten connections if needed.

6. Coat terminals with a small amount of grease.
