Replace Directional/Warning Light and Clearance Light Bulb—Open Operator's Station

1. NOTE: Bulb replacement is the same for directional/warning light and clearance light. Left side shown.


   PULV004548-UN-13JUN09


   LV15013-UN-09NOV11

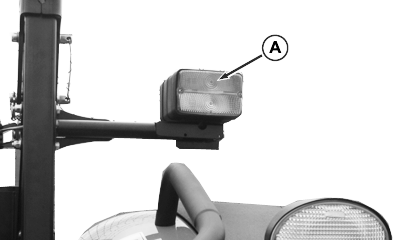

   A - Lens Housing

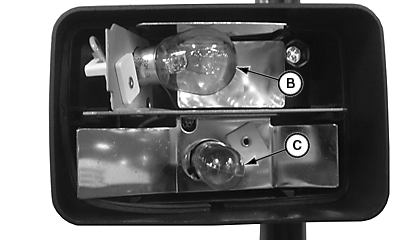

   B - Directional/Warning Light Bulb

   C - Clearance Light Bulb

   Remove screws and lens housing (A).

---




2. Push and twist bulb (B or C) to remove from socket.

3. Install new bulb, lens housing and screws.
