Replace Fender Light Bulb—Open Operator's Station

1.

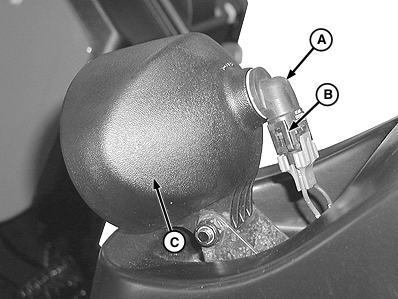

   LV8586-UN-14AUG03

   Left Side Shown

   A - Bulb

   B - Wiring Harness Connector

   C - Housing

   Disconnect wiring harness connector (B) from bulb (A).

---




2. Rotate bulb counterclockwise and remove from housing (C).

3. Install new bulb into housing and rotate clockwise.

4. Connect wiring harness connector.
