Replace Warning/Directional Light Bulb—Open Operator's Station

1. NOTE: Bulb replacement is the same for warning light and directional light. Left side shown.

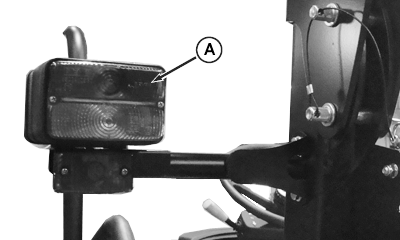

   PULV004479-UN-26MAY09


   LV15013-UN-09NOV11

   A - Lens Housing

   B - Directional Light Bulb

   C - Warning Light Bulb

   Remove screws and lens housing (A).

---




2. Push and twist bulb (B or C) to remove from socket.

3. Install new bulb, lens housing and screws.
