Front Three-Point Hitch

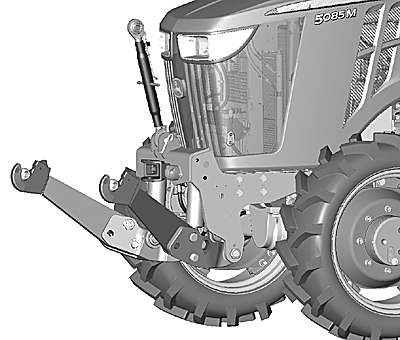

LV16167-UN-12OCT12

Front Three-Point Hitch

The three-point front hitch is operated with rear SCV II.

Lock for Draft Link Hooks

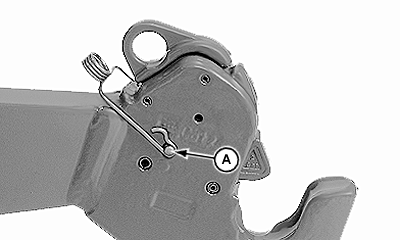

LV16212-UN-22OCT12

A - Draft Link Locking Pin

CAUTION: When implements with asymmetrical load (e.g. side mounted mowing unit) are attached, or when driving through high-growing bushes, and trees (e.g. when working in the forest), the draft links must be prevented from opening accidently.

Use draft link locking pins (A) at both coupler hooks.

See your John Deere dealer for available locking pins.

Draft Link Positions

LV16176-UN-12OCT12

LV16177-UN-12OCT12

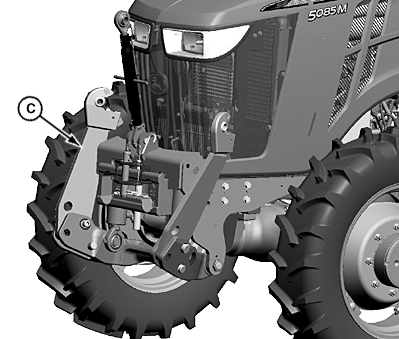

LV18433-UN-24JUL13

A - Draft Links with Vertical Float

B - Draft Links Locked

C - Draft Links in Transport Position

Multi-valve

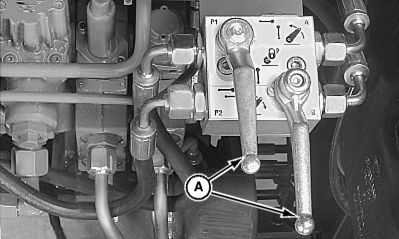

LV16188-UN-12OCT12

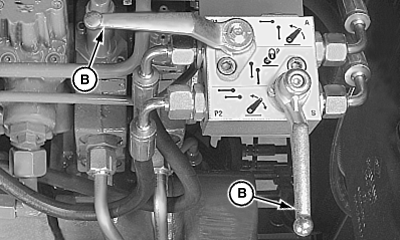

LV16189-UN-12OCT12

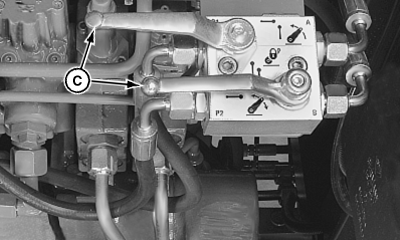

LV16190-UN-12OCT12

A - Oil Flow Blocked

B - Raising with Oil Pressure

C - Raising and Lowering with Oil Pressure

• Oil flow blocked (A)
• Raising with oil pressure, lowering with deadweight of implement (B)
• Raising and lowering with oil pressure (C)

CAUTION: If rear SCV II is equipped with additional couplers for the operation of a rear implement, multi-valve must be in setting (A) to block flow to front hitch.

NOTE: When a chain is used to limit the cutting height on a mowing unit, avoid damage by selecting setting (B). Also, set SCV II to float position for lowering mower unit.

Couplers

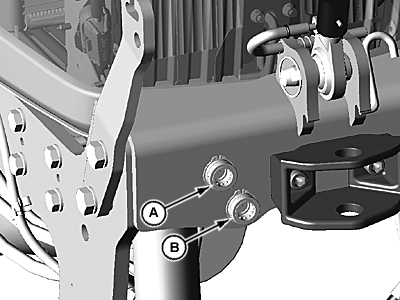

LV16199-UN-19OCT12

A - SCV I/III Extend

B - SCV I/III Retract

Couplers (A and B) are provided with oil via rear SCV.

If tractor is equipped with a dual rear SCV, oil is supplied from SCV I.

If tractor is equipped with a triple rear SCV, oil is supplied from SCV III.

CAUTION: SCV I or III must not be equipped with additional couplers toward rear.

CAUTION: The hydraulic system has a maximum system pressure of 20,000 kPa (200 bar; 2900 psi). For your protection and to assure proper functioning of the system, use only genuine John Deere parts.

The couplers allow hydraulic hose to be connected and disconnected only if no pressure is present.

To connect hose union, press it firmly into coupler. To disconnect, give it a firm pull.
