Fill Fuel Tank

CAUTION:

TS202-UN-23AUG88

LV14734-UN-25AUG11

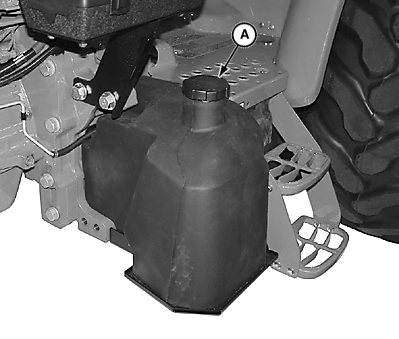

A - Fuel Tank (Outer Tank Shown)

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

Fill fuel tank after each day of operation to prevent condensation in tank as moist air cools.

5075M, 5085M, 5100M, and 5115M	Open Operator Station	Outer and Inner Tank	153 L (40.4 gal.)
5075M, 5085M, 5100M, and 5115M	Cab	Outer and Inner Tank	177 L (46.8 gal.)

NOTE: Adding John Deere Fuel Flow Improver, or equivalent, to fuel or bulk storage tank reduces fuel gelling and controls wax separation during cold weather.
