Road, Work, and Warning Lights

LV18011-UN-06JUN13

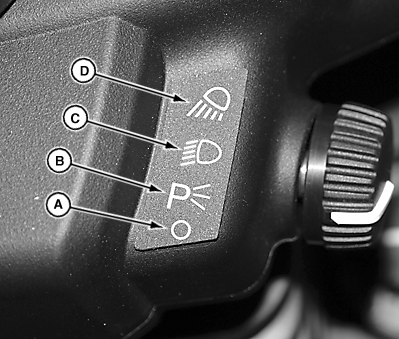

Light Switch

LV16218-UN-26OCT12

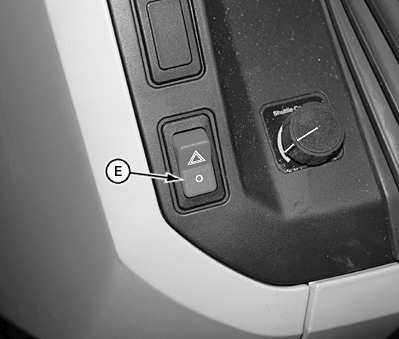

Warning Light Switch

A - Off Position

B - Parking Lights On

C - Road Position

D - Work Position

E - Warning Light Switch

CAUTION: When on public roads, do not use work lights. Ensure light switch is in road position (C) and warning lights are flashing.

Bright clear lights can blind or confuse drivers of other vehicles.

IMPORTANT: Adjust, repair, or replace damaged lights immediately, in accordance with section, Maintenance—As Required/Per Condition, in this manual.

Switch Position	Use	Warning Lights Amber	Tail Lights Red	Work Light	Headlights Front Grille
A—Off	Field, Day Time	Off	Off	Off	Off
B—Parking Lights	Parked, Any Time	On	Off	Off	Off
C—Road Light	On Road, Day Time	Off	On	Off	On—Low Beam
D—Work Light	Off Road, Night Time	Off	On	On	On—High Beam
E—Warning Light	On Road, Any Time	On Flashing	Off	Off	Off
