Front Loader Installation—Front Loader Brackets

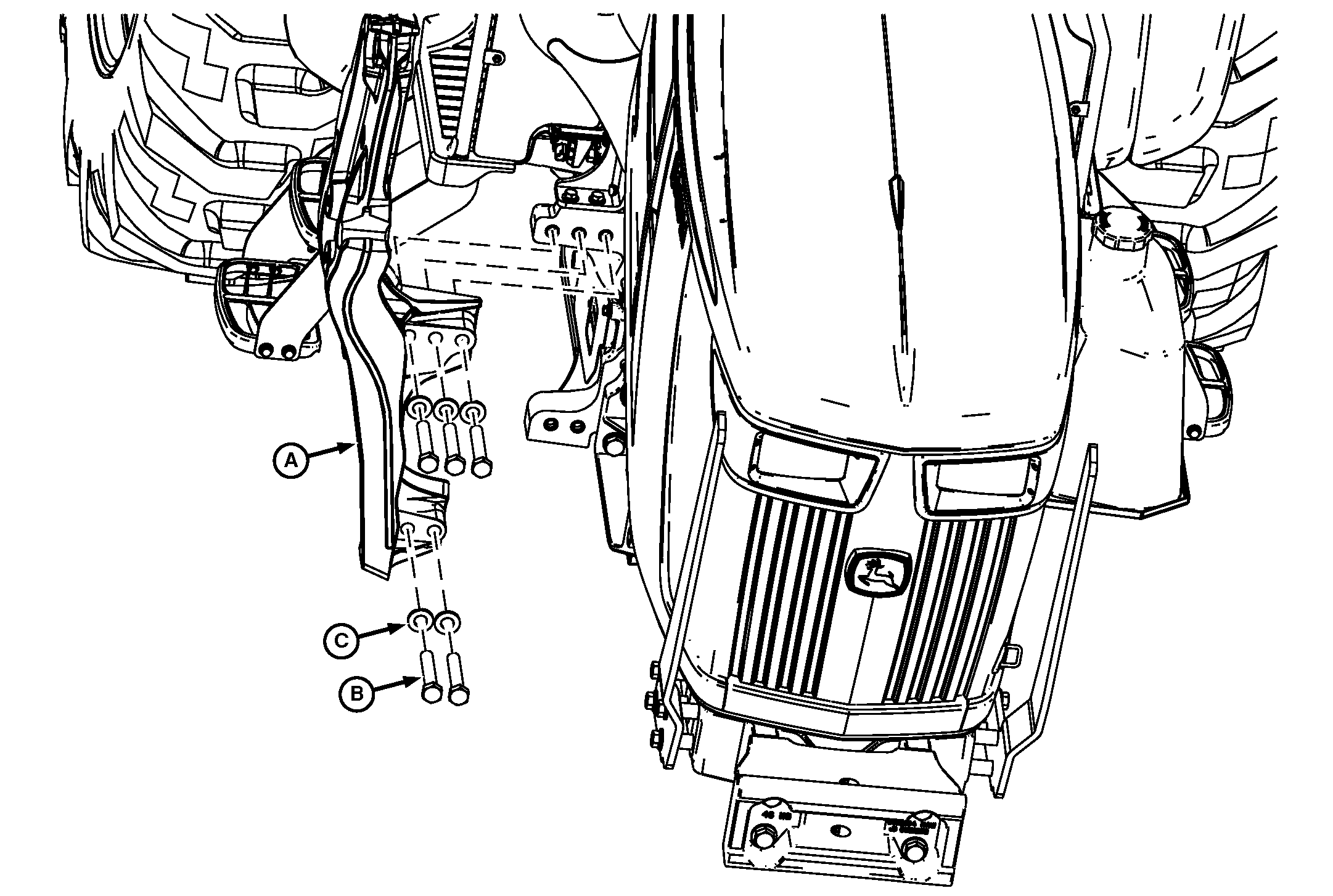

LV16621-UN-08FEB13

A - Front Loader Bracket (Right-Hand Shown)

B - Hex Head Cap Screw (10 used)

C - Flat Washer (10 used)

Hardware used on John Deere Front Loader Brackets
Item	Description	Width across flats	Standard	Thread	Length	Identification/Grade
B	Hex Head Cap Screw	30 mm	ISO 4014	M20 x 2.5	110 mm	12.9
C	Washer	—	JDS 130	—	—	300HV

Front-loader brackets must be installed as shown; the screws must be tightened to 625 N•m (461 lb-ft). Check torque regularly: see Section 110, Maintenance-As Required-Per Condition.

IMPORTANT: A front loader checked and approved by John Deere is available for purchase.

When installing John Deere front-loader brackets, use appropriate hardware only, as shown in the illustration above.

Comply also with Operator’s Manual and Installation Instructions of front-loader.
