Change Engine Oil and Filter

LV14415-UN-13JUN11

LV18450-UN-24JUL13

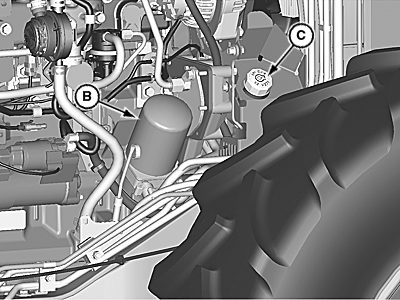

Right Side View - 5075M

LV14416-UN-13JUN11

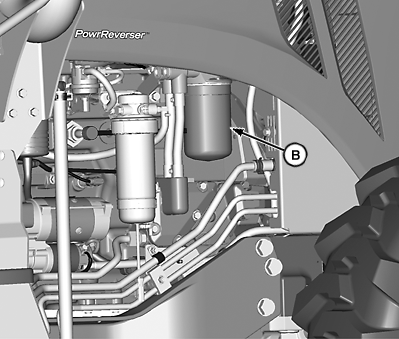

Right Side View - Except 5075M

LV14417-UN-13JUN11

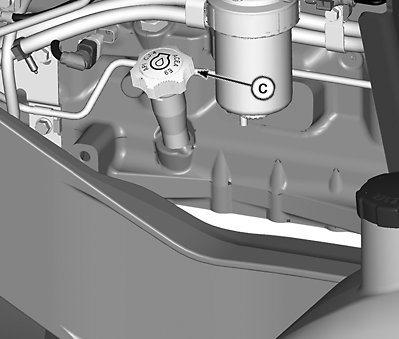

Left Side View - Except 5075M

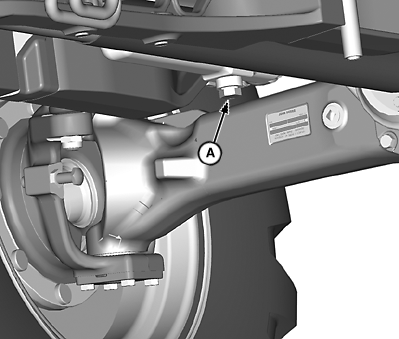

A - Engine Oil Drain Plug

B - Engine Oil Filter

C - Crankcase Filler

SERVICE INTERVAL
	INITIAL — 100 HOURS Minimum, 500 Hours Maximum
	REGULAR — 500 HOURS If John Deere Plus-50™ II oil and John Deere filter is used.

IMPORTANT: New engines are filled, at the factory, with John Deere Break-In Plus™ Engine Oil. (See section 100 Fuel, Lubricants, and Coolant for oil specifications.)

If the engine has too much operating time at idle, constant speeds, and/or light load usage, or make-up oil is required during the first 100-hour period, a longer break-in period may be needed without changing Break-In Plus oil until 500 hours.

If diesel fuel has a high sulfur content, refer to DIESEL ENGINE OIL in section 100 Fuel, Lubricants, and Coolant.

1. Operate engine to warm oil.

2. Park tractor on level ground and SHUT OFF engine. Remove key.

3. Remove oil drain plug (A) and drain oil.

4. Open hood.

5. Remove engine oil filter (B).

   NOTE: Make sure old filter gasket is completely removed from housing before installing new filter.

6. Apply a film of oil on new oil filter gasket and install new filter. Hand-tighten plus 1/2 turn.

7. Install drain plug (A).

8. Add oil to filler (C). (See Diesel Engine Oil in section 100 Fuel, Lubricants and Coolant.)

   Item	Measurement	Specification
   5075M Engine Crankcase Oil	Capacity	8.5 L (2.2 gal)
   5085M, 5100M, and 5115M Engine Crankcase Oil	Capacity	13 L (3.4 gal)

9. Start engine and inspect drain plug (A) and filter (B) for leaks..

10. Stop engine and remove key.

11. NOTE: If oil leaks in excess see your John Deere dealer.

12. Recheck oil level, add if necessary.

13. Lower hood.
