Windshield Wiper and Washer

LV17148-UN-22MAR13

LV14516-UN-29JUL11

Reservoir

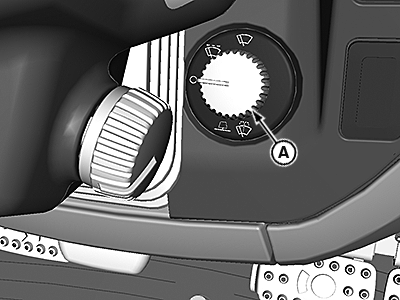

A - Windshield Wiper/Washer Switch

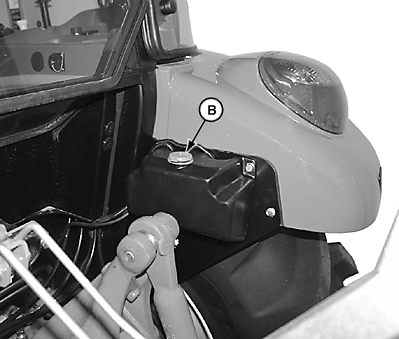

B - Washer Fluid Reservoir

Windshield wiper switch (A) has 3 positions; OFF, INTERMITTENT, or ON. Rotate knob to desired position.

Push switch knob to activate windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid.
