Light Location

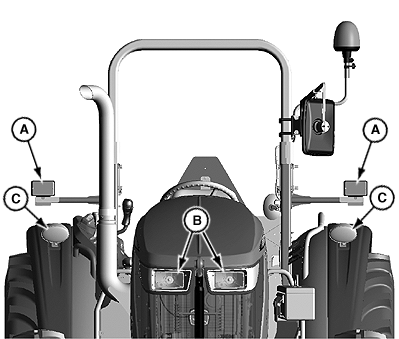

OOS Tractor

LV15958-UN-09AUG12

LV15959-UN-09AUG12

A - Warning/Directional/Clearance Light

B - Head Light

C - Front Field/Work Light

D - Rear Field/Work Light

E - Warning/Directional Light

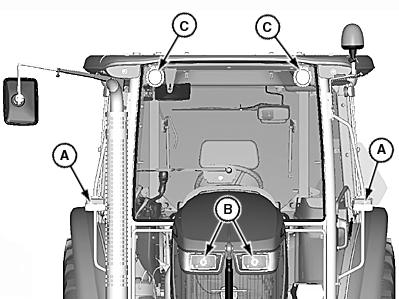

Cab Tractor

LV15956-UN-18SEP12

LV18010-UN-06JUN13

A - Directional/Clearance Light

B - Head Light

C - Front Field/Work Light

D - Rear Field/Work Light

E - Warning/Directional Light

F - License Plate Light
