Console Controls—Open Operator’s Station

Electrohydraulic Hitch Control

LV15926-UN-03AUG12

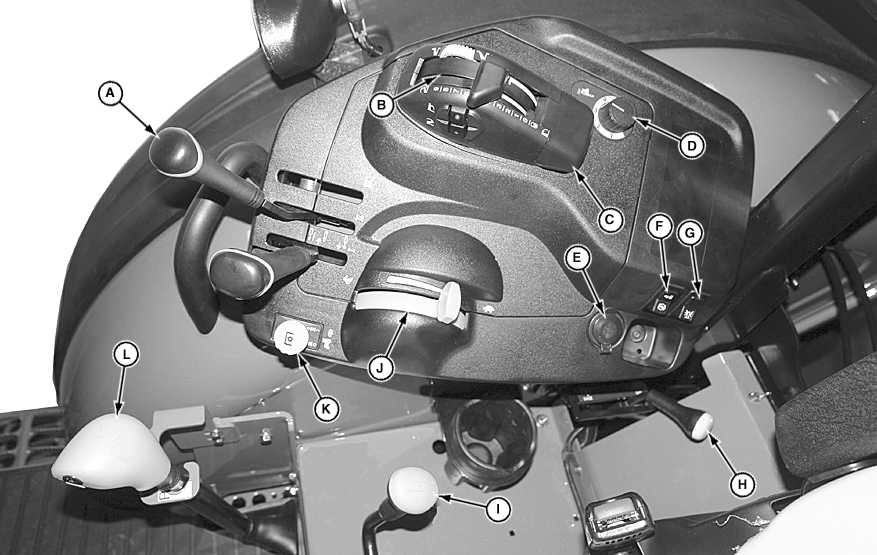

Right-Hand Console Controls

A - Selective Control Valve Levers

B - Rear Hitch Control

C - Rear Hitch Rate-of-Drop Control and Rear Hitch Height Limit Control

D - Rear Hitch Draft Control

E - Power Outlet

F - MFWD Switch

G - Beacon Light Switch (if equipped)

H - Rear PTO Speed Shift Lever

I - Range Shift Lever

J - Hand Throttle

K - Rear PTO Engagement Switch

L - Gear Shift Lever

Mechanical Hitch Control

LV15928-UN-06AUG12

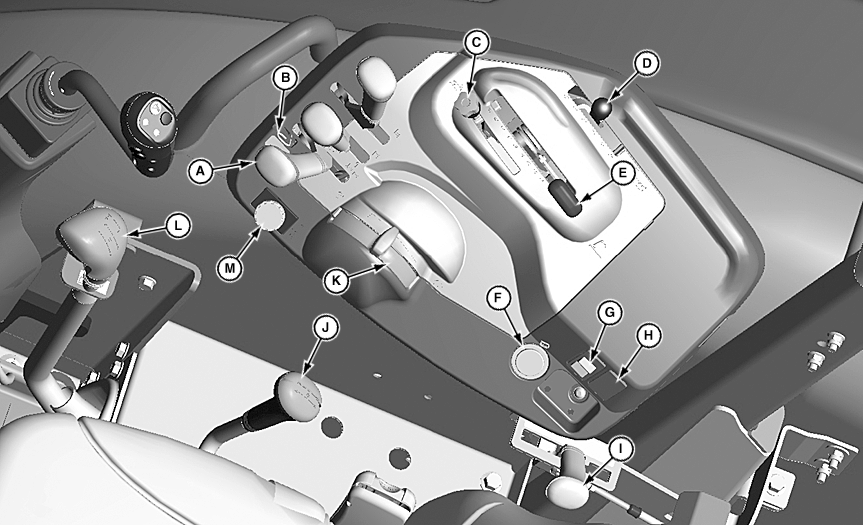

Right-Hand Console Controls

A - Selective Control Valve Levers

B - Selective Control Valve Lockout

C - Position Control Stop Knob

D - Rear Hitch Draft Control Lever

E - Rear Hitch Position Control Lever

F - Power Outlet

G - MFWD Switch

H - Beacon Light Switch (if equipped)

I - Rear PTO Speed Shift Lever

J - Range Shift Lever

K - Hand Throttle

L - Gear Shift Lever

M - Rear PTO Engagement Switch

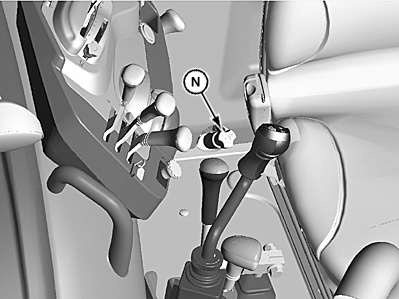

N - Rear Hitch Rate-of-Drop Knob (Located right-hand side, behind operators seat)

LV15930-UN-06AUG12

Rate-of-Drop

Left-Hand Controls

LV15927-UN-03AUG12

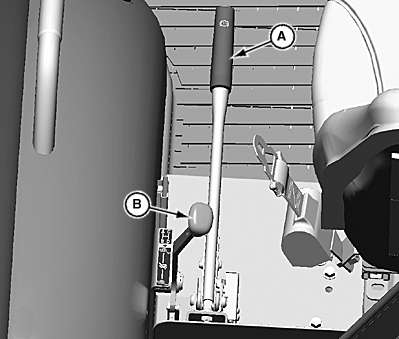

Left-Hand Controls

A - Secondary Brake Lever

B - Creeper Lever (if equipped)
