Console Controls—Cab

LV18002-UN-06JUN13

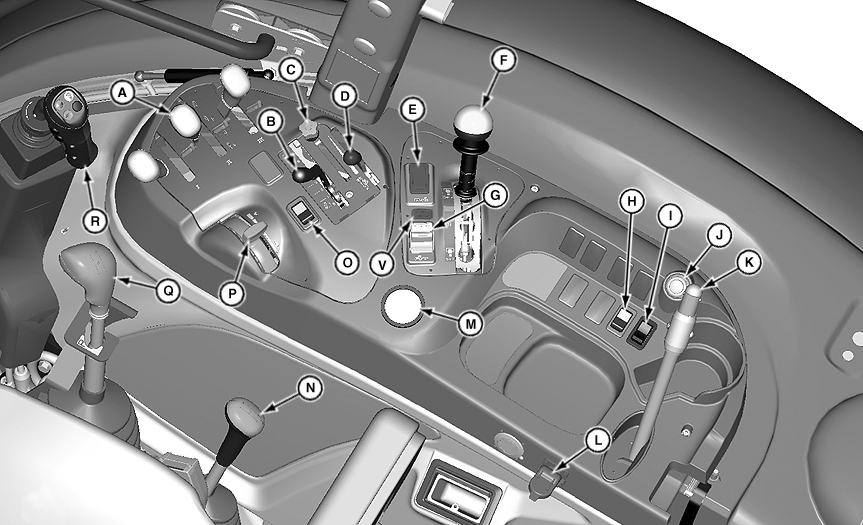

Right-Hand Control Console with Mechanical Hitch Control

LV15885-UN-10AUG12

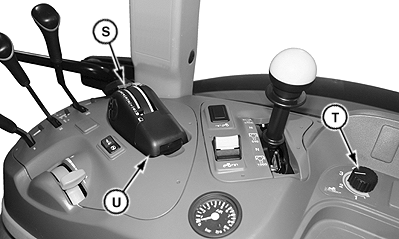

Electrohydraulic Hitch Control

LV15948-UN-10AUG12

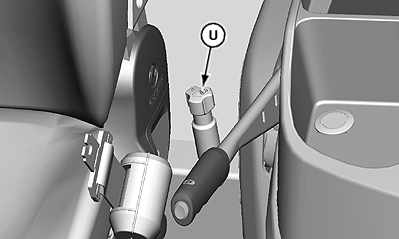

Left-Hand Side—Mechanical Rate-of-Drop Knob

A - Selective Control Valve Levers

B - Rear Hitch Control (Mechanical)

C - Control Lever Stop

D - Rear Hitch Draft Control

E - Front PTO Switch (If Equipped)

F - PTO Speed Shift Lever

G - Rear PTO Switch

H - Remote PTO Switch (If Equipped)

I - Rear Wiper Switch

J - Power Outlet

K - Rear Hitch Release

L - Convenience Outlet

M - Pneumatic Trailer Brake Pressure Gauge (If Equipped)

N - Range Shift Lever

O - MFWD Switch

P - Hand Throttle

Q - Gear Shift Lever

R - Multifunction Joystick (If Equipped)

S - Rear Hitch Control (Electrohydraulic)

T - Rear Hitch Draft Control

U - Rear Hitch Rate-of-Drop Knob

V - Front PTO Indicator Light

NOTE: Creeper lever not shown in this picture.

RXA0099430-UN-06OCT08

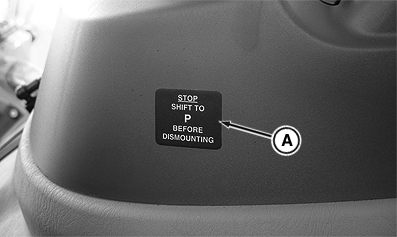

Park Position Decal

LV15460-UN-24FEB12

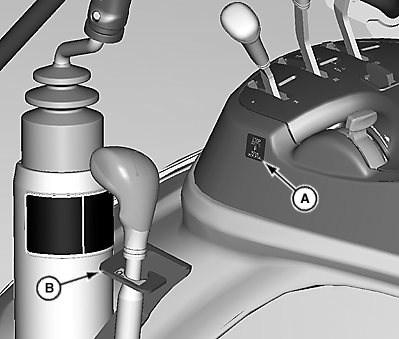

Park Position Bracket

LV14811-UN-27SEP11

Gear Shift Lever in Park Position

A - Park Position Decal

B - Park Position Bracket

C - Gear Shift Lever In Park Position

NOTE: Ensure gear shift lever is placed into park position before leaving operators seat.
