Door and Windows

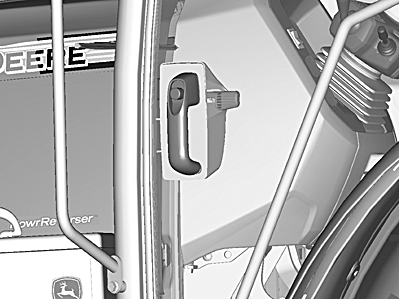

LV15549-UN-14MAR12

Cab Door - Left Side Shown

If cab doors are blocked, in an emergency situation, rear window provides a large exit path.

LV12459-UN-14MAR06

Side window

LV12460-UN-12APR05

Rear window

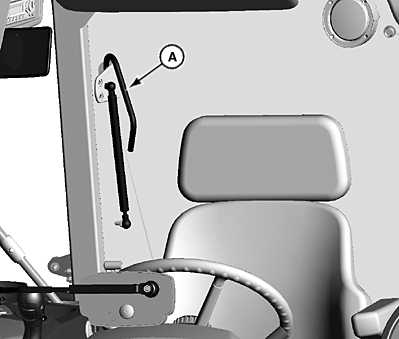

LV18017-UN-11JUN13

A - Grab Handle

Side and rear windows can be opened. Release latch and push window out to open.

Rear window comes equipped with a grab handle (A).

Sun Roof

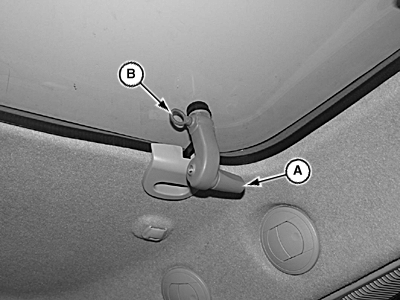

LV15532-UN-08MAR12

Sunroof

Using levers (A), sun roof can be opened for better air circulation.

Sun roof can be used as an emergency exit by removing pins (B) and fully opening.

Retractable Sun Shade

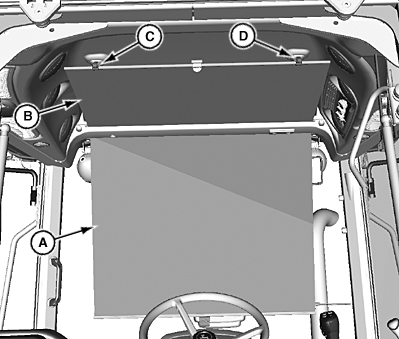

LV18024-UN-11JUN13

A - Retractable Front Sun Shade

B - Retractable Top Sun Shade

C - Hooks

D - Mounting Tabs

Pull retractable front sun shade (A) straight down to shade sun from front windshield.

Pull down, slightly, on sun shade to retract.

Pull retractable top sun shade (B) towards rear of tractor to shade sun from sun roof. Secure sun shade by inserting hooks (C) into mounting tabs (D).

Pull sun shade, slightly, towards the rear of tractor to retract.

NOTE: Hold sun shade firmly as shade retracts into storage housing.
