HVAC Temperature

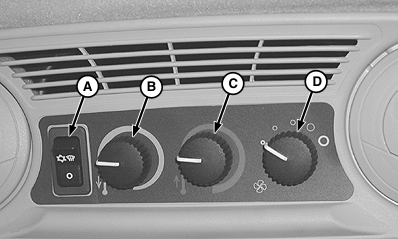

LV8415-UN-14JUL03

A - Air Conditioner and Defrost Switch

B - Air Conditioner Temperature Control Knob (if equipped)

C - Heater Temperature Control Knob

D - Blower Speed Control Knob

Push top half of switch (A) to turn on air conditioner/defrost.

Turn control knob (B) to adjust air conditioner temperature.

Turn control knob (C) to adjust heater temperature.
