Before Starting the Engine

CAUTION: Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to ventilate the area.

TS220-UN-15APR13

Engine Exhaust Fumes

1.

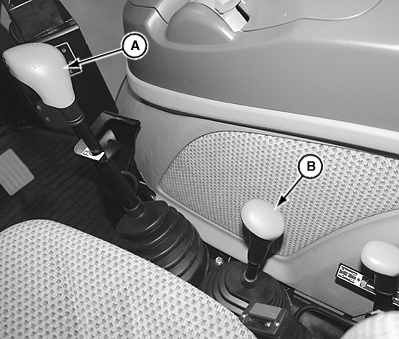

   LV15970-UN-10AUG12

   Gear Shift Lever and Range Shift Lever


   LV15971-UN-10AUG12

   PowrReverser Lever

   A - Gear Shift Lever

   B - Range Shift Lever

   C - Reverser Lever

   Transmission Controls: Put gear shift lever (A) in park and range shift lever (B) in neutral.

---




2. If equipped, put reverser lever (C) in neutral.

3.
   LV15972-UN-10AUG12

   Cab


   LV15973-UN-10AUG12

   OOS

   A - PTO Speed Shift Lever

   B - Rear PTO Switch

   Disengage PTO: Pull back (Cab) or push down (OOS) PTO switch (B), then place PTO speed shift lever (A) in neutral.

   NOTE: Do not engage or disengage PTO using PTO speed shift lever (A).

---




4.

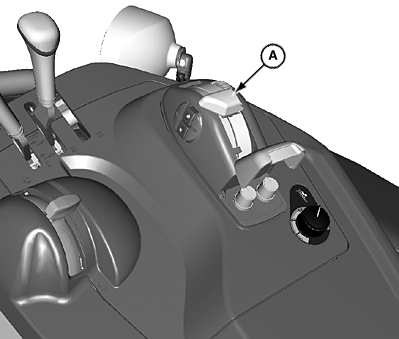

   LV18028-UN-11JUN13

   Electrohydraulic Hitch-OOS

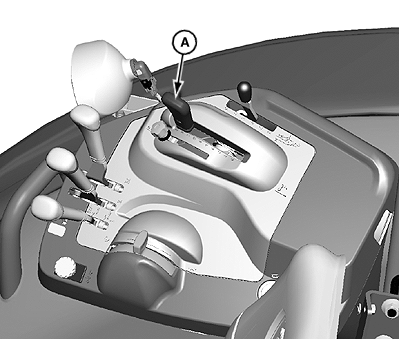

   LV15975-UN-10AUG12

   Mechanical Hitch—OOS

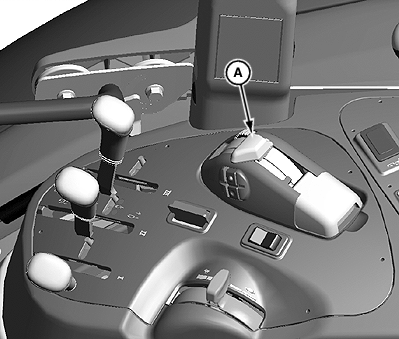

   LV15977-UN-10AUG12

   Electrohydraulic Hitch—Cab

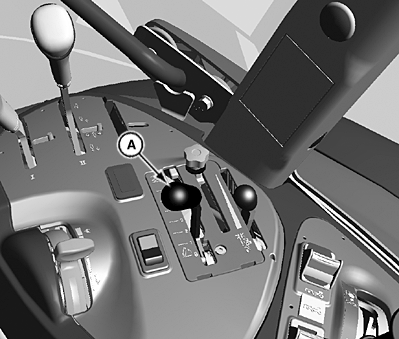

   LV18026-UN-11JUN13

   Mechanical Hitch—Cab

   A - Hitch Position Lever

   Push hitch position lever (A) forward to lower equipment to the ground.

---




5. Turn key to run position. Check gauges and indicator lights.
