Battery Cut-Off Switch—If Equipped

NOTE: Wait at least 30 seconds after turning engine off to activate battery cut-off switch.

This switch allows power from battery to be cut off from rest of electrical system. Ignition switch MUST be in OFF position.

CAUTION: Never switch off power at battery while engine is running! Damage to tractor electronics is possible, and voltage peaks at alternator can be dangerous.

Activate battery cut-off switch (disconnect battery from electrical system):

1.

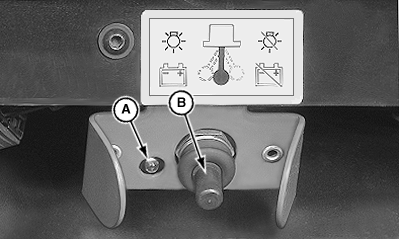

   LV18211-UN-08JUL13

   Battery Cut-Off Switch

   A - Indicator Light

   B - Battery Cut-Off Switch

   Stop tractor, and engage park lock.

---

2. Turn off key switch and wait approximately 30 seconds. During this time, the green indicator light (A) of the battery cut-off switch flashes.

   IMPORTANT: The battery cut-off switch cannot be activated as long as green indicator light is flashing.

3. After approximately 30 seconds, flashing will stop and green indicator light will glow continuously.
4. Activate battery cut-off switch (disconnect battery from electrical system) by pushing the spring loaded battery cut-off switch (B) to the right (off position).
5. Switch springs back to center position and green indicator light turns off.

IMPORTANT: When storing for long periods of time turn battery cut-off switch to OFF position (tractor electrical system disconnected from battery power supply). Battery discharges if tractor is not used, and battery cut-off is in ON position.
