Operate PowrReverser Plus Transmission

LV9564
LV9564-UN-13AUG04

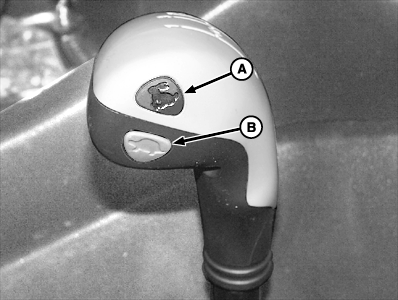

High/Low Switches

LV15984
LV15984-UN-15AUG12

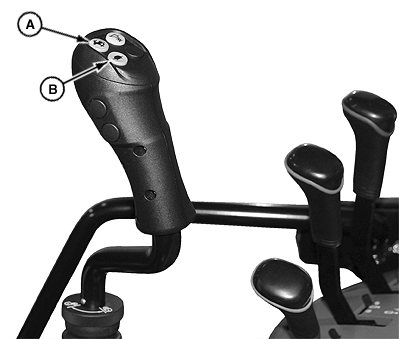

High/Low Switches (optional location)

LV14754
LV14754-UN-31AUG11

A - High Speed

B - Low Speed

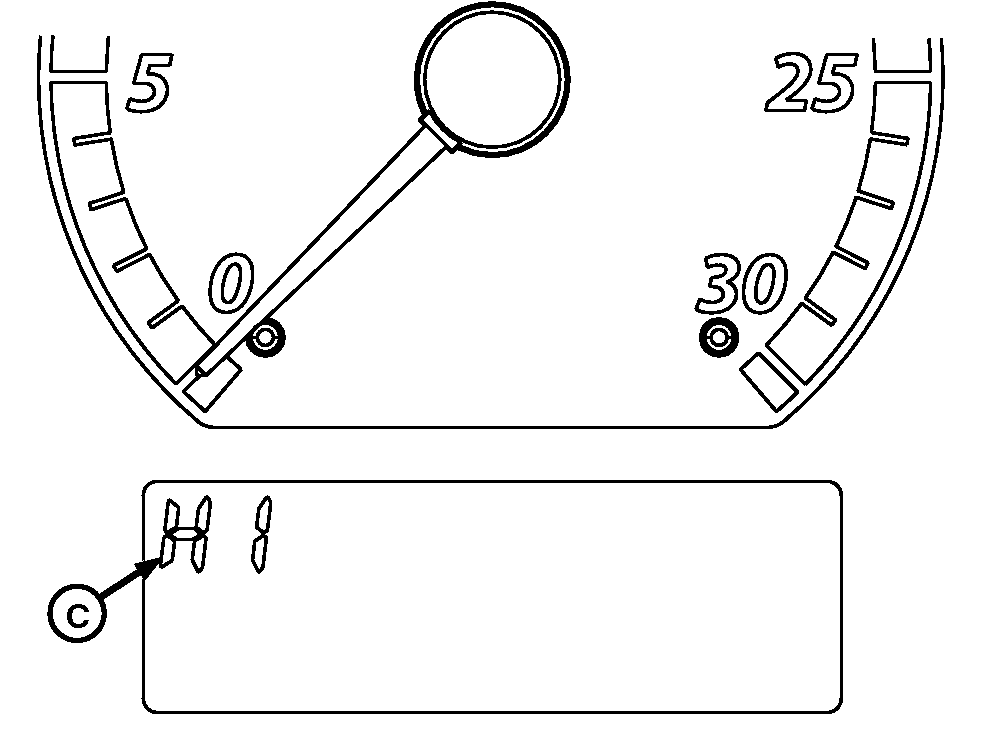

C - High Speed Indicator

PowrReverser Plus™ transmission is available with push-button high/low split-shift feature. Each range and gear combination is split for more exact speed control.

High/low split-shift feature doubles forward speeds to 32 forward and 16 reverse.

Use the high/low switches to up-shift and down-shift within the selected range and gear. “Hi” appears when high speed is selected.

NOTE: “Lo” appears at same location (C) when low speed is selected.

PowrReverser Plus is a trademark of Deere & Company

JZ81662,0001057-19-20130607
