Quick Coupling (Hook-Type) Draft Links—If Equipped

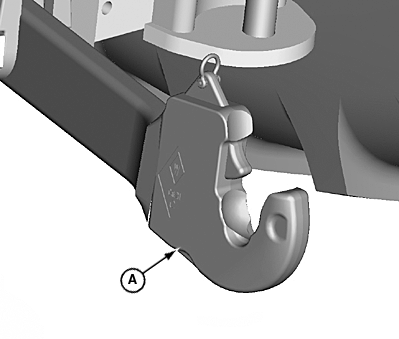

LV15845-UN-29JUN12

A - Hook Type Draft Link

Hook type draft links (A) are intended for Category I and Category II implements. Implements can be attached to and removed from the draft links without the driver having to leave his seat.

CAUTION: When implements with asymmetrical load (e.g. side-mounted mowing unit) are attached, or when driving through high-growing bushes and trees (e.g. when working in the forest), the draft links must be secured against opening accidentally.

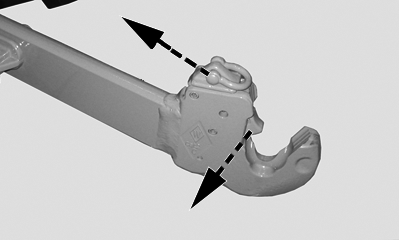

NOTE: The coupler hooks can be locked in their "open" position by pulling on lever and rotating 90 degrees.

To close the coupler hook again, pull the lever up at an angle and rotate.

PULV004517-UN-02JUN09

Attaching implement

1. With draft links lowered, reverse tractor until the coupler hooks are below the implement hitch pins.

2. Slowly raise draft links until pins are engaged in coupler hooks and locked into position.

3. Adjust center link to the required length and attach to top attaching point of implement mast.

IMPORTANT: Make absolutely certain that implement is correctly locked to coupler hooks.
