Loader Auxiliary Driving Lights—If Equipped
LV15963-UN-10AUG12

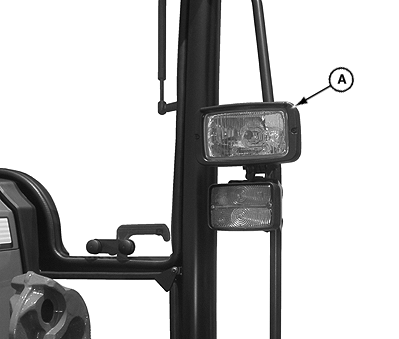

Auxiliary Driving Light (Left Side Shown)
LV15964-UN-10AUG12

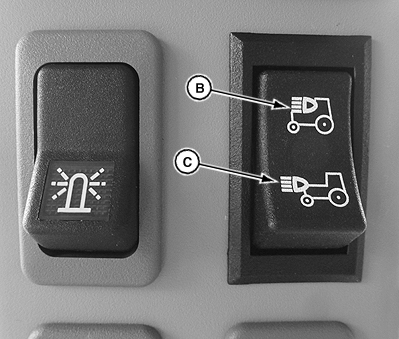

Loader/Auxiliary Driving Light Switch
LV18099-UN-13JUN13

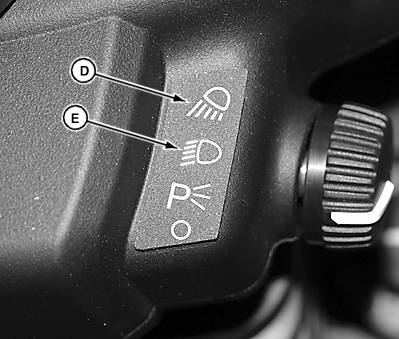

Tractor Light Switch
A - Auxiliary Driving Light Assembly
B - Auxiliary Driving Lights On Position
C - Auxiliary Driving Lights Off Position
D - Work Lights Position
E - Road Lights Position
Auxiliary driving lights can be used as an alternative for obscured driving headlights mounted in front grille.
|
Auxiliary Light Switch |
Main Light Switch |
Auxiliary Driving Lights |
Grille Headlights |
|---|---|---|---|
|
B—On |
D—Work |
On |
Off |
|
E—Road |
On |
Off |
|
|
C—Off |
D—Work |
Off |
On |
|
E—Road |
Off |
On |
|
JZ81662,0001074-19-20130702 |
