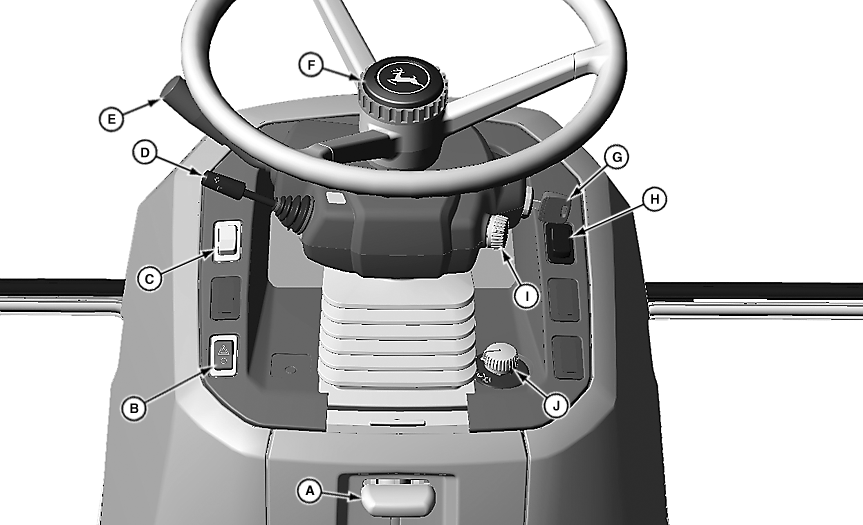

Front Console Switches and Controls

LV18196-UN-03JUL13

Front Console

A - Steering Wheel Tilt Lever

B - Hazard Light Switch

C - Roll Mode Switch

D - Turn Signal/High Beam/Flash-to-Pass, and Horn (If Equipped)

E - Forward-Neutral-Reverse Lever

F - Steering Wheel Telescopic Knob

G - Key Switch

H - Exhaust Filter Control Switch

I - Headlight Switch

J - Wiper Switch (Cab Only)

NOTE: Cab controls shown. Open Operator's Station controls similar.
