Operate Rear SCV Control Levers

CAUTION: Overheated hydraulic oil can cause personal injury and component malfunctions. To prevent hydraulic oil from overheating, DO NOT hold Selective Control Valve (SCV) control lever in operating position for an extended period of time.

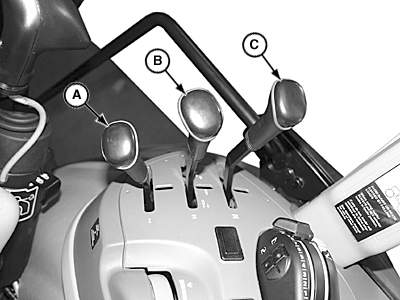

LV14585-UN-10AUG11

Cab Shown; OSS Similiar

A - SCV I Control Lever

B - SCV II Control Lever

C - SCV III Control Lever

• Extend
• Retract
• Neutral
• Float

Float is the only position with mechanical detent. Extend and retract automatically spring back to neutral when lever is released. Float has to be manually returned to neutral.

To EXTEND cylinder, pull lever REARWARD.

To RETRACT cylinder, push lever FORWARD.

To bring cylinder in NEUTRAL position, release lever to CENTER position.

To bring cylinder in FLOAT position, push lever further FORWARD past retract.
