Check Compressed Air System

LV18244-UN-09JUL13

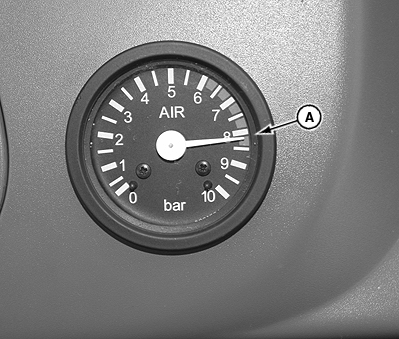

Air System Gauge

With the engine shut off and the air system gauge (A) at 800 kPa (8 bar; 116 psi), no drop in pressure should be registered over a period of three minutes. If a drop in pressure is detected, see your John Deere dealer.
