Height-Adjustable Trailer Hitch—If Equipped

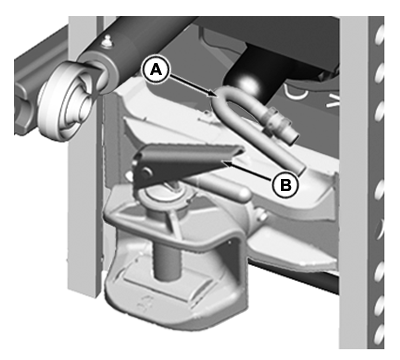

PUPX200108-UN-17MAY10

Manual EEC Type

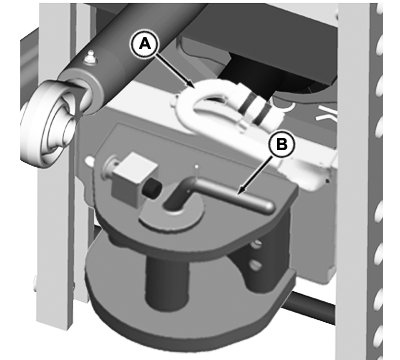

PUPX200107-UN-17MAY10

CUNA-D2 and CUNA-C Type

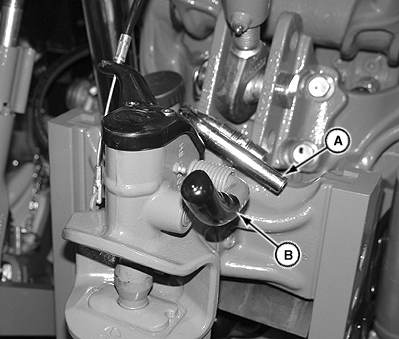

LV16013-UN-22AUG12

Automatic Type

LV16014-UN-22AUG12

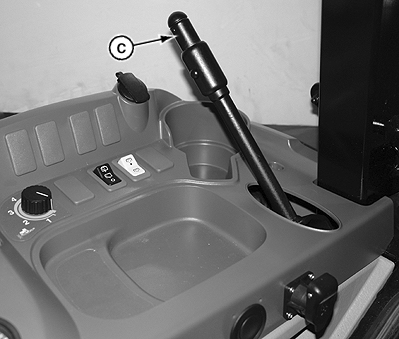

Remote Hitch Lever

A - Quick Release Lever

B - Actuating Handle

C - Remote Hitch Lever

These hitches can be adjusted up or down according to the implement height and to obtain clearance for the center link or PTO operation.

Trailer hitches with different dimensions may be available in certain countries. The tractor can be equipped with different hitch versions which are operated in different ways.

CAUTION: Use the Manual EEC hitch system for trailers with non-pivoting towing eyes only.

Use the CUNA hitch system for trailers with pivoting towing eyes only.

IMPORTANT: Use only trailers with a towing eye that matches the hitch pin diameter [40 mm (1.58 in.)].

Adjust Height and Operate Hitch:

1. The height of all hitches can be adjusted using quick release lever (A). Support hitch with one hand while moving to the required position.
2. Make sure that the side locking pins have fully engaged in the side support slots.
3. Manual EEC, CUNA-D2, and CUNA-C type hitches can be operated by handle (B).
4. Automatic type hitch can be operated using lever (B) or can be operated remotely from the operator’s seat using remote hitch lever (C).

Maximum permissible static vertical loads and towable loads are stated in “Specifications” section.

NOTE: Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see ”Service Every 300 Hours”).
