Reverse 540/540E/1000 RPM PTO Shaft—If Equipped

CAUTION: Entanglement in rotating driveline can cause serious injury or death.

Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields turn freely.

Wear close-fitting clothing. Before making adjustments, connections, or cleaning PTO driven equipment, STOP the engine and wait for PTO drivelines to stop.

Allow PTO shaft to cool before changing; it may be hot due to operation. To avoid injury, wear gloves.

TS1644
TS1644-UN-22AUG95

Rotating Drivelines

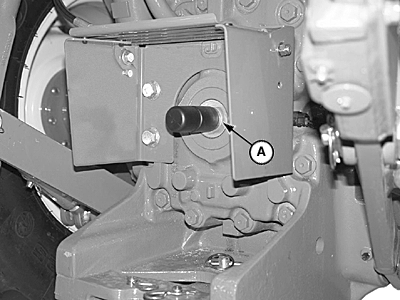

LV14632
LV14632-UN-11AUG11

Snap Ring

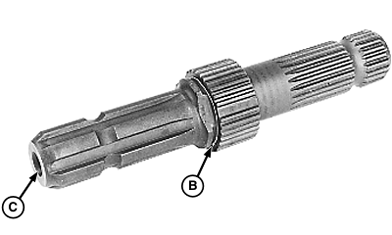

LV12604
LV12604-UN-26APR05

Stub Shaft

A - Snap Ring

B - PTO Shaft

C - Bore

PTO stub shaft has six splines for operating 540/540E rpm implements and 21 splines for 1000 rpm implements.

  1. NOTE: A flattened area on the stub shaft facilitates snap ring removal and installation.

    Align snap ring ends with access flat. Remove snap ring (A) and pull out PTO shaft (B).

  2. Clean PTO shaft thoroughly and coat with grease. Be sure end bore (C) is clean when installing shaft for 1000-rpm operation.

  3. Turn PTO shaft end-for-end and insert in PTO housing until snap ring groove is visible.

    NOTE: PTO stub shaft may need to rotate slightly during installation until the splines align.

  4. Install snap ring.

  5. Move shift lever to agree with PTO shaft position. See “Select Correct PTO Speeds—If Equipped” in this section.
