Set Tread—Multi-Position Rear Wheels

LV8610-UN-28AUG03

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (this maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

IMPORTANT: After setting wheel spacing, tighten rear wheel rim-to-disk bolts and rear wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
Rear Wheel Rim-to-Disk (Steel 24 in. and 28 in. Wheels)	Torque	245 N˙m (180 lb-ft)
Rear Wheel Rim-to-Disk (Steel 30 in. and 38 in. Wheels)	Torque	350 N˙m (255 lb-ft)
Rear Steel Wheel Disk-to-Hub M20 Bolts	Torque	600 N˙m (445 lb-ft)

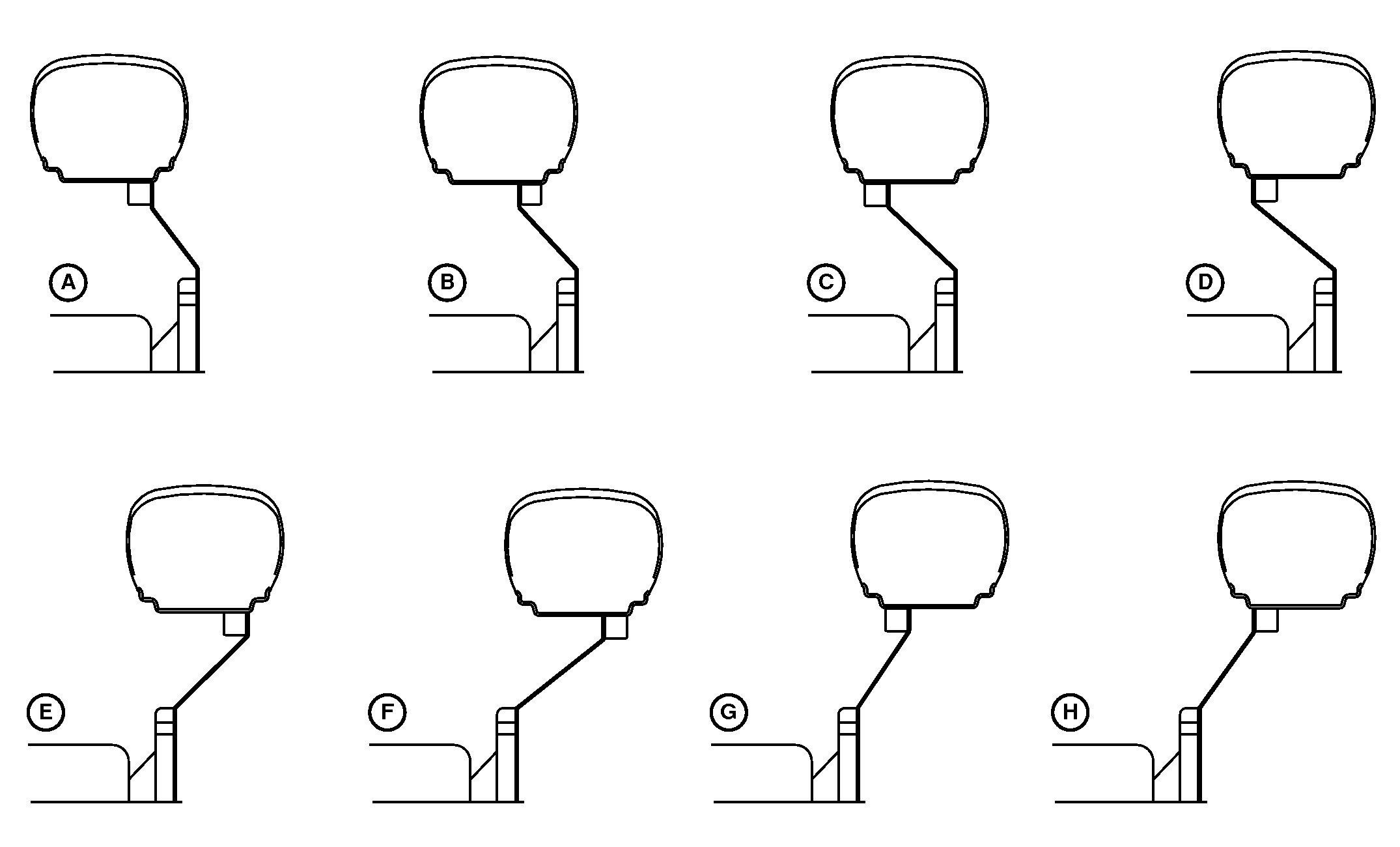

MULTI-POSITION REAR WHEELS—TREAD WIDTH (Centerline-to-Centerline)
	Diagram
Tire	A	B	C	D	E	F	G	H
480/70R28	INT1	INT1	INT1	INT1	1515 mm (59.6 in.)	1610 mm (63.4 in.)	1715 mm (67.5 in.)	1810 mm (71.3 in.)
16.9R30 (420/85R30)	INT1	INT1	INT1	INT1	1516 mm (59.7 in.)	1609 mm (63.3 in.)	1719 mm (67.7 in.)	1812 mm (71.3 in.)
18.4R30	INT1	INT1	INT1	INT1	1516 mm (59.7 in.)	1609 mm (63.3 in.)	1719 mm (67.7 in.)	1812 mm (71.3 in.)
16.9R34 (420/85R34)	INT1	INT1	INT1	INT1	1516 mm (59.7 in.)	1611 mm (63.4 in. )	1719 mm (67.7 in.)	1814 mm (71.4 in.)
480/70R34	INT1	INT1	INT1	INT1	1516 mm (59.7 in.)	1611 mm (63.4 in. )	1719 mm (67.7 in.)	1814 mm (71.4 in.)
540/65R34	INT1	INT1	INT1	INT1	INT1	1611 mm (63.4 in. )	1719 mm (67.7 in.)	1814 mm (71.4 in.)
12.4R36 (320/85R36); (with 44mm spacer)	INT1	INT1	1403 mm (55.2 in.)	1507 mm (59.3 in.)	1603 mm (63.1 in.)	1707 mm (67.2 in.)	1803 mm (71.9 in.)	1907 mm (75.1 in.)
13.6R38 (340/85R38)	INT1	INT1	INT1	1419 mm (55.9 in.)	1515 mm (59.6 in.)	1619 mm (63.7 in.)	1715 mm (67.5 in.)	1819 mm (71.6 in.)
