Clean Open Crankcase Vent (OCV) Tube

NOTE: Open Crankcase Vent (OCV) is not a serviceable item on 5075M.

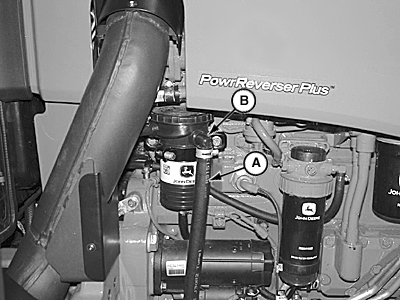

LV14664-UN-18AUG11

Right-Hand Side

A - Open Crankcase Vent Tube

B - OCV Filter Housing

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

Remove open crankcase vent tube (A) from OCV filter housing (B). Wash in solvent or blow clean with compressed air. Install OCV tube to OCV filter housing. Be sure that vent tube is not kinked or pinched.
