Inspect and Adjust Air Compressor Belt (5075M Cab)

Replace if worn or damaged.

NOTE: Run engine for 5 minutes to warm a cold belt. Let a hot belt cool for 15 minutes before adjustment.

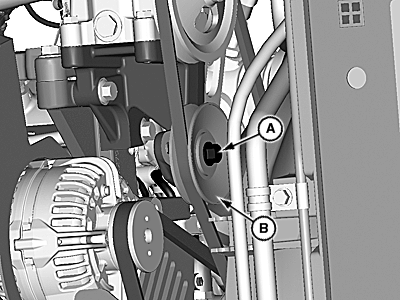

  1. LV18493
    LV18493-UN-26JUL13

    A - Idler Pulley Cap Screw

    B - Idler Pulley

    Check tension by pressing belt midway between pulleys. Belt deflection must be to specification.

    ItemMeasurementSpecification
    Air Compressor BeltBelt Tension—Deflection6 mm (.25 in.) at 16 N·m (4 ft-lbs)

  2. Adjust tension by loosening idler pulley cap screw (A).
  3. Apply pressure to idler pulley (B) by pulling it towards right side of tractor.
  4. Tighten idler pulley cap screw.
