Replace AC Compressor Belt (5075M)

1.
   LV18491-UN-25JUL13


   LV18490-UN-25JUL13

   AC Compressor Belt Routing

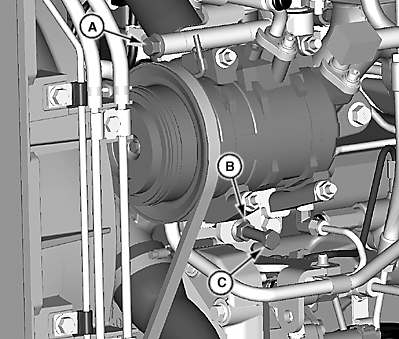

   A - AC Compressor Pivot Bolt

   B - Jam Nut

   C - Adjustment Bolt

   Loosen AC compressor pivot bolt (A).
2. Loosen jam nut (B).
3. Turn adjustment bolt (C) counterclockwise to loosen belt.
4. Belt can be pulled around fan to remove.
5. Install new belt in reverse order of removal.
6. Adjust belt tension. (See Inspect and Adjust AC Compressor Belt (5075M Cab) in Maintenance—Every 300 Hours section.)

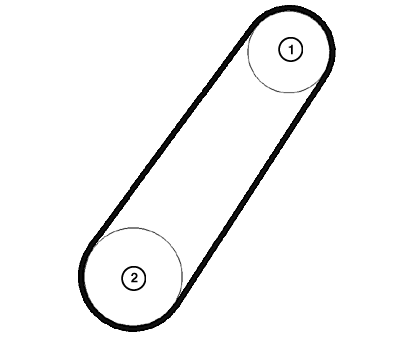

Belt Routing
1	AC Compressor
2	Crankshaft Pulley
